Contatos

Donos, sócios e gerentes:

Responsáveis por solicitações: Virginia

Informações e dados cadastrais

Razão Social:\ CNPJ:

Link

Moden OI

IP 10.1.1.254\ admin, papaleguas9002

GVT

Modem GVT

Ponta dos Ganchos Empresa de Turismo LTDA\ CNPJ 10.304.667/0001-31

ADSL Operadora GVT\ Numero:

Suporte: 10325

Modem Sagemcom\ Login: admin\ Senha: gvt25

Interesting ports on 192.168.1.1:
MAC Address: 7C:03:4C:27:35:20 (Sagemcom) (Conectado a eth0 do firewall)
Too many fingerprints match this host to give specific OS details

Nmap finished: 1 IP address (1 host up) scanned in 42.786 seconds

Operadora OI

Modem XDSL

Suporte OI: 0800-6414040

6X5 Emp. Turismo LTDA\ CNPJ 02.880.567/0001-25

Circuito Finalidade Local\ 0495209 VPN (INTERLAN) Sta Monica: 192.168.2.200 / 10.10.10.6\ Ganchos: 192.168.1.200 / 10.10.10.5

Modem Alcatel Speedtouch Pro\ Login: keycode&senh@2001\ Senha: keycode&senh@01

Interesting ports on 192.168.2.200:
Not shown: 1676 closed ports
PORT     STATE SERVICE
21/tcp   open  ftp
23/tcp   open  telnet
80/tcp   open  http
1723/tcp open  pptp
MAC Address: 00:90:D0:1C:9B:A0 (Thomson Telecom Belgium) (Conectado ao switch porta 12)
Device type: broadband router
Running: Alcatel embedded
OS details: Alcatel Speed Touch *DSL modem/router
Uptime 1.289 days (since Wed Jul 20 09:02:25 2011)

Circuitos

TERM/CONT 0430186: CIRCUITO DO DDR\ \ TERM/CONT 0495209: INTERLAN 512 KBPS (escritório Florianópolis)\ \ TERM/CONT 0494475: INTERLAN 512 KBPS\ \ TERM/CONT 0483400: IP DEDICADO 1 MBPS\ \ TERM/CONT 0494478: ROTEADOR (sem custo)

Roteador Wireless

Interesting ports on 192.168.2.205:
Not shown: 1675 closed ports
PORT     STATE SERVICE
7/tcp    open  echo
80/tcp   open  http
515/tcp  open  printer
8080/tcp open  http-proxy
9100/tcp open  jetdirect
MAC Address: F4:CE:46:4E:73:A6 (Unknown)

ACESSO a REDE SEM FIO

pdgescritorio

lup41nf0rm4t1c4

Firewall | Arquivos | Backup | Impressão

Patrimônio:\ Atendimento:\ \ Versão SO: debian 6.0.7\ Nome na Rede: server-sm\ Hardware:\ Proc: Intel(R) Core(TM)2 E7400 2.80GHz\ Mem: 4GB / HD: 2 x 1TB | 320GB

Acesso WEB: n/a\ Acesso SSH: ssh -l lupa ponta-dos-ganchos.ddns.net -p 6622

IP's\ LAN 192.168.2.1/24\ WAN1 10.1.1.1/24

Logins

aline, reservas123

felipe, fe*2014

marketing, ma*7728

reserva01, re*5017\ reserva02, re*5018\ reserva03, re*5019\ reserva04, re*5020\ reserva05, re*5021

print-ts, pr*2075

virginia, vi*1099

Cacti

admin, 0101de2012\ cleber, 2012cl48

Grupos

[Atendimento]
bruna

Compartilhamentos

[printers]
        comment = All Printers
        path = /var/spool/samba
    public =yes
        browseable = yes
        guest ok = yes
        writable = no
        printable = yes


[Comercial]
        path = /pdg/share/comercial
        valid users = @comercial
    write list = @comercial
        force group = comercial


[Estagio]
    path = /pdg/share/estagio
    valid users = estagio,lupa
    write list = estagio,lupa

[Financeiro]
        path = /pdg/share/financeiro
        valid users = @financeiro
        write list = @financeiro
        force group = financeiro


[Fotos]
    path = /pdg/share/fotos
    valid users = @fotos
    write list = virginia,nicolas
    force group = fotos

[Backup]
        path = /backup/estacoesdetrabalho
        public = yes

[Lupa]
    path = /pdp/share/suporte_lupa
    public = yes

[E-mails]
        path = /pdg/share/emails
    valid users = @financeiro @comercial @fotos

Sistemas

Opera

Maquina Windows XP utilizada para acesso remoto quando o Opera não funciona no escritorio

200.215.37.66

Backup

Backup DIARIO

Seg a Sab 19:30\ rsync -av /pdg/share /etc /backup/

Backup SEMANAL

Sex 21:00\ find /backup/*.tar -ctime +8 -exec rm -rf {} \;\ tar -czf /backup/arquivos.`date +%d.%b.%Y`.tar /pdg/share /etc

Backup HD EXTERNO

Técnicos Externos Plugam o HD no servidor do cliente e entram em contato com o NOC. Agendamos a tarefa para o mesmo dia a noite e o técnico busca o HD no dia seguinte.\ Backup Semanal (Tecnicos tem que ir uma vez por semana ao local).\ rsync -av /backup/ /mnt/backupDiscoExterno1/backup/

Agenda de Backups\ **/12 - Tecnico ...

Script para backup e envio de email do bkp hd externo\ \ at -f /home/lupa/backup_hdexterno.sh 20:00 today

Backup DESKTOPS

Backup atráves do 'Cobian Backup' das máquinas Reservas 01,02,03,04 para o diretorio /backup/estacoesdetrabalho/$NOMDEDOCOMPUTADOR/ todos os dias.\ Log Enviado para o email backup@lupainformatica.com.br\

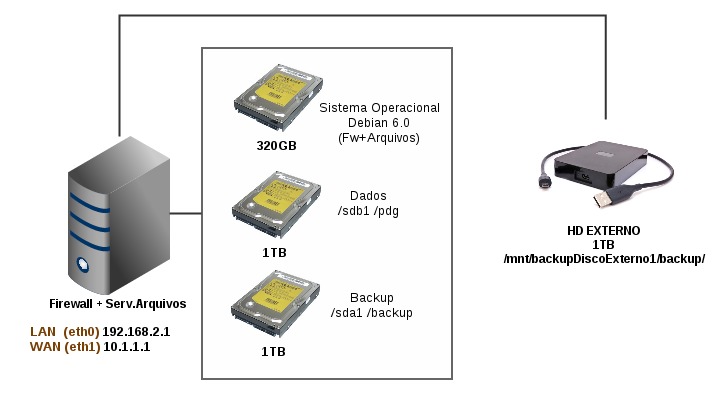

Visao HDs PDG

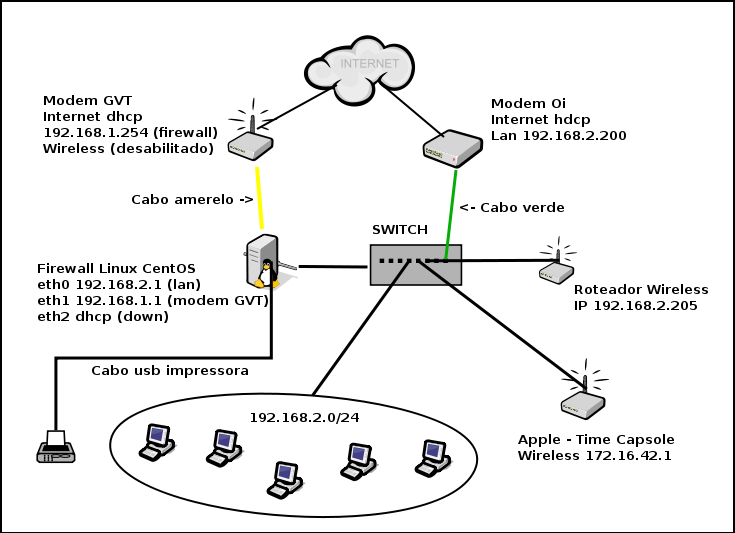

Visão Macro da Rede

Configurações de rede

eth0

[root@rot ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth0\ DEVICE=eth0\ BOOTPROTO=static\ #BOOTPROTO=dhcp\ HWADDR=00:1C:C0:C3:F8:DD\ ONBOOT=yes\ IPADDR=192.168.2.1\ NETMASK=255.255.255.0

[root@rot ~]# vi /etc/sysconfig/network-scripts/route-eth0\ 192.168.1.0/24 via 192.168.2.200 dev eth0

[root@rot src]# /sbin/route -n\ Kernel IP routing table\ Destination Gateway Genmask Flags Metric Ref Use Iface\ 192.168.2.0 0.0.0.0 255.255.255.0 U 0 0 0 eth0\ 192.168.1.0 192.168.2.200 255.255.255.0 UG 0 0 0 eth0\ 10.1.1.0 0.0.0.0 255.255.255.0 U 0 0 0 eth1\ 0.0.0.0 10.1.1.254 0.0.0.0 UG 0 0 0 eth1

[root@rot ~]# ifconfig eth0\ eth0 Link encap:Ethernet HWaddr 00:1C:C0:C3:F8:DD\ inet addr:192.168.2.1 Bcast:192.168.2.255 Mask:255.255.255.0\ inet6 addr: fe80::21c:c0ff:fec3:f8dd/64 Scope:Link\ UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1\ RX packets:2558161 errors:0 dropped:0 overruns:0 frame:0\ TX packets:3783626 errors:0 dropped:0 overruns:0 carrier:0\ collisions:0 txqueuelen:1000\ RX bytes:559694761 (533.7 MiB) TX bytes:3792016191 (3.5 GiB)\ Interrupt:177 Base address:0x6000

eth1

[root@rot ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth1\ DEVICE=eth1\ BOOTPROTO=static\ #BOOTPROTO=dhcp\ PEERDNS=no\ ONBOOT=yes\ IPADDR=192.168.1.1\ NETMASK=255.255.255.0\ GATEWAY=192.168.1.1\ HWADDR=00:1A:3F:4A:53:9D

[root@rot ~]# ifconfig eth1\ eth1 Link encap:Ethernet HWaddr 00:1A:3F:4A:53:9D\ inet addr:192.168.1.2 Bcast:192.168.1.255 Mask:255.255.255.0\ inet6 addr: fe80::21a:3fff:fe4a:539d/64 Scope:Link\ UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1\ RX packets:2048364 errors:0 dropped:0 overruns:0 frame:0\ TX packets:1504227 errors:0 dropped:0 overruns:0 carrier:0\ collisions:0 txqueuelen:1000\ RX bytes:1584775888 (1.4 GiB) TX bytes:428325891 (408.4 MiB)\ Interrupt:58 Base address:0x2000

eth2

[root@rot ~]# cat /etc/sysconfig/network-scripts/ifcfg-eth2\ DEVICE=eth2\ BOOTPROTO=dhcp\ ONBOOT=no\ HWADDR=00:1A:3F:4A:6A:6B

[root@rot ~]# ifconfig eth2\ eth2 Link encap:Ethernet HWaddr 00:1A:3F:4A:6A:6B\ BROADCAST MULTICAST MTU:1500 Metric:1\ RX packets:0 errors:0 dropped:0 overruns:0 frame:0\ TX packets:0 errors:0 dropped:0 overruns:0 carrier:0\ collisions:0 txqueuelen:1000\ RX bytes:0 (0.0 b) TX bytes:0 (0.0 b)\ Interrupt:50 Base address:0x100

Categoria: PONTA DOS GANCHOS
